MTP-800 Series (Software)

Multimode Microplate Reader
MTP-800 Series

"SF6" Data Analysis Software combines ease of use with powerful data handlings

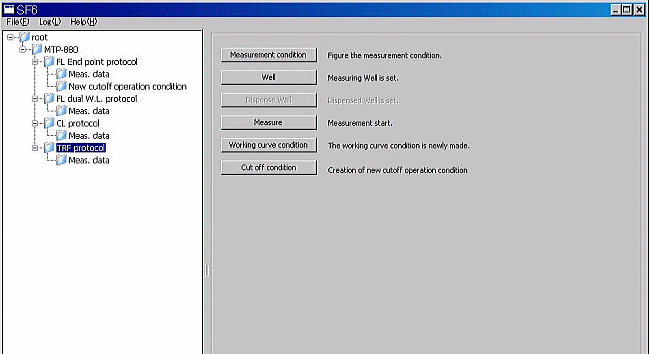

Dual pane Screen interface provides enhanced operability and usability

Not SF6 provides every data-analysis function which users need including data handling, report formatting and also reader control on PC. The highly intuitive layout makes assay setup easy to follow. Operation buttons with annotation are positioned according to the workflow. Method storage eliminates the need to re-enter commonly used assays.

Powerful Data Handling
Various working curve formulae are available.
Tre result of measurement and working-curve calculation can be exported to Microsoft® Excel. The flexible report formats allow easy report customization.

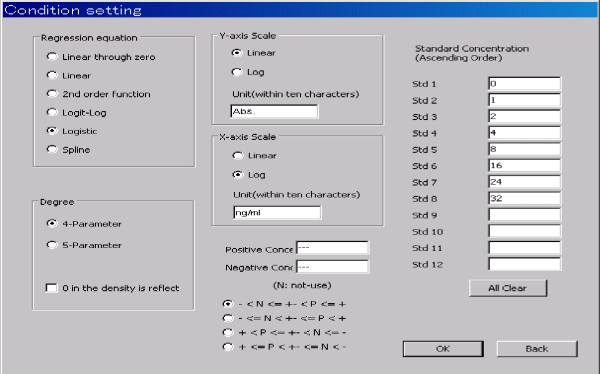

Various working curve formulae
	Logit-Log / Linear, Quadratic, Cubic
	Logistics / 4 and 5-parameter
	Spline / Linear, Cubic
	B/B0 calculation for Competitive ELISA

Cutoff Auto Judgment
	Cutoff judgment is performed with specified calculation formula.

Kinetics calculation
	Plenty of setting items including Maximum/Average Gradient, Integral Value and Arrival Time Report
	Logistics / Four, five-parameter
	Spline / Linear, Cubic
	B/B0 calculation for Competitive ELISA

Windows XP, Vista, Mac OSX(Power PC) Japanese or English are selectable
